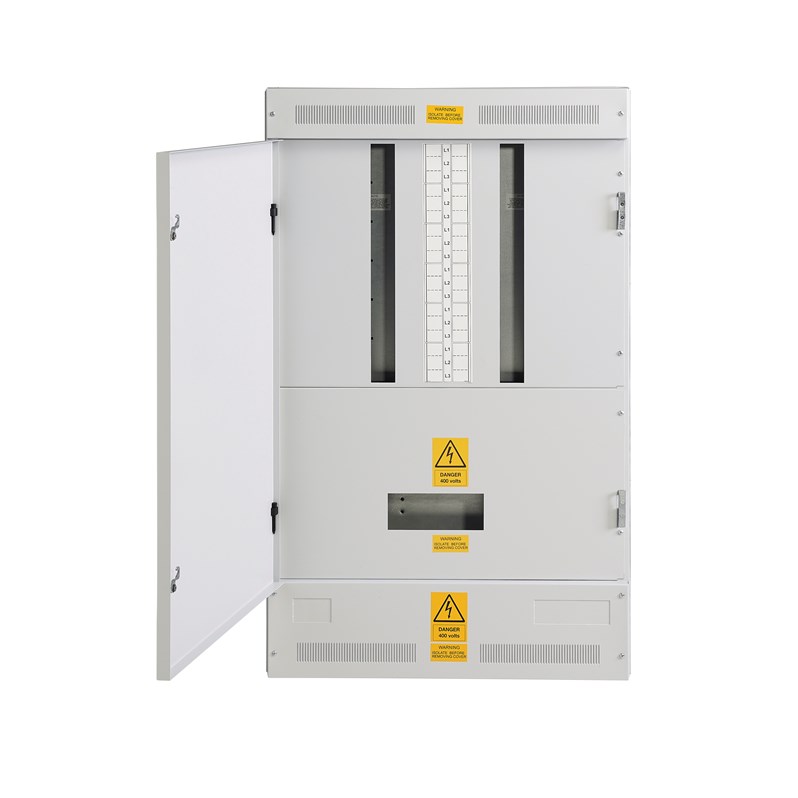

Wylex NH VM160 630A 12-Way 3P+N Panel Board
TP or 4P Switch Disconnector, MCCB or direct connection incomer options available with a NHVA part number prefix. Accepts Wylex NH VM160 fixed or adjustable SP or TP MCCBs from 16A to 160A. Utilising a NHVM3P2502 enclosure allows for the addition of two 200A or 250A TP MCCBs. Accepts both integral incoming metering (Pulsed output/Modbus or MID) and integral Type 1, Type 2, or Type 1 and 2 surge protection. Form 3B Type 2 Form of Separation, IP3X with door closed, Icw = 35kA for 1s, Type tested and ASTA certified. RAL 7035 Grey powder coat finish. Designed and manufactured in the UK to BS EN 61439-3.
Fiche technique
| Référence | NHVM36312 |
|---|---|
| Marque | Wylex |
| Catégorie | Tableaux triphasés & commerciaux |
| Fault rating | 35kA for 1 second |
| Caractéristique 1 | Form 3B Type 2 form of separation |
| Caractéristique 2 | IP3X with door closed – steel manufacture |
| Caractéristique 3 | Type tested and ASTA certified |
| Caractéristique 4 | 3-phase, 3-pole configuration |
| Caractéristique 5 | 12 Type B ways |
| Caractéristique 6 | Lockable unit |
| Caractéristique 7 | BS EN 61439-2 |
| Dimensions (H x W x D) | 1361 x 700 x 198mm |
| Main switch rated current | 630A |
