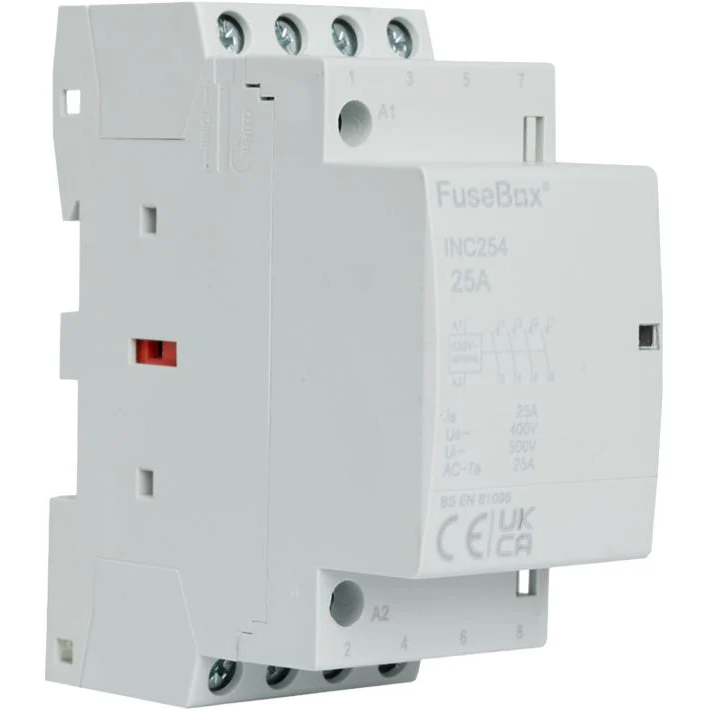

FuseBox INC254NC 25A 230V N/C 4 pole Contactor
FuseBox INC254NC 25A 230V N/C 4 Pole Contactor The FuseBox INC254NC is a robust modular contactor designed for reliable switching and control in industrial and commercial electrical applications. Rated at 25A (AC-7a) or 15A (AC-7b), this 4-pole unit delivers consistent performance with minimal power consumption. Key specifications include a holding power of just 4.6VA and inrush of 34VA, making it energy-efficient for continuous operation. With a dissipated wattage of 1.6W and maximum cable capacity of 16mm², it accommodates standard installation requirements. The normally closed configuration provides fail-safe operation, whilst the supplied 9mm heat dissipation spacers ensure optimal thermal management. Built to professional standards, this contactor features a 1-year warranty and is ideal for motor control, lighting circuits, and load switching applications where reliability is ess…
Fiche technique
| Référence | INC254NC |
|---|---|
| Marque | Fusebox |
| Catégorie | Commande & sectionnement |
| Inrush VA | 34VA |
| Holding VA | 4.6VA |
| Caractéristique 1 | Rated at 25A (AC-7a) or 15A (AC-7b) |
| Caractéristique 2 | 4 Pole |
| Caractéristique 3 | Supplied with 2x9mm heat dissipation spacers |
| Caractéristique 4 | Normally Closed state configuration |
| Caractéristique 5 | 1 Year Warranty |
| Dissipated wattage | 1.6W |
| Maximum cable capacity | 16mm2 |
