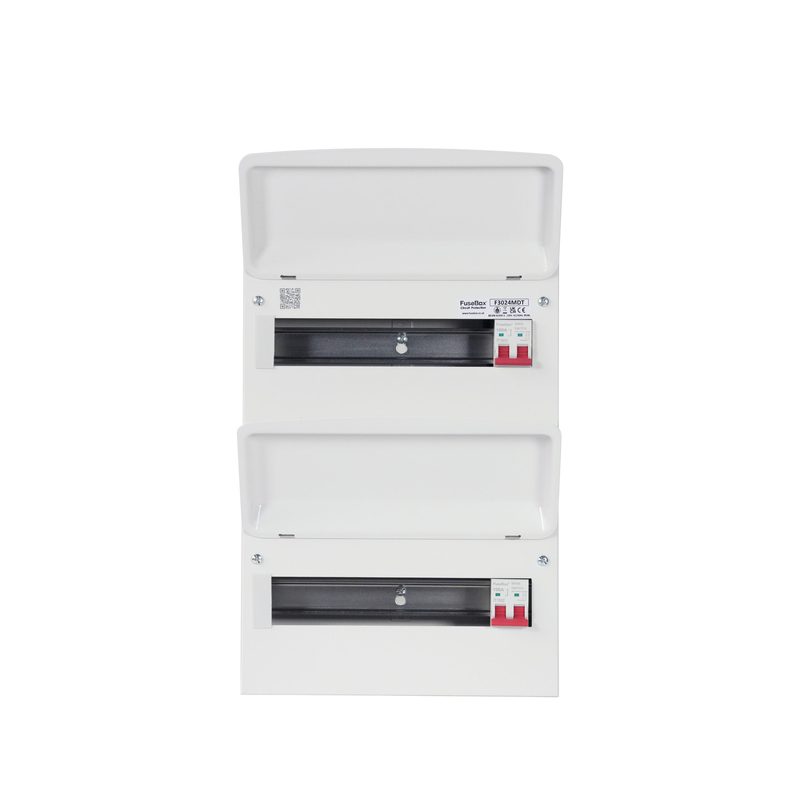

FuseBox F3024MDT Dual Tariff Consumer Unit 24 Way 2x100A Main Switch
The new FuseBox F3024MDT 24 usable way Consumer Unit is a fantastic cost effective and quality solution for any suitable application. The most popular consumer unit brand on the market today, Lamplec looks to provide you the service you need with every FuseBox order. Dimensions – Height 515mm x Width 306mm x Depth 116mm Updated model replacing F2020MDT
Fiche technique
| Référence | F3024MDT |
|---|---|
| Marque | Fusebox |
| Catégorie | Tableaux domestiques |
| Caractéristique 1 | Upgraded reinforced grommet strip included |
| Caractéristique 2 | Earth and neutral terminal bars on top of consumer unit |
| Caractéristique 3 | Removable and raised DIN rail |
| Caractéristique 4 | Round knock-outs on all faces (20mm & 32mm top and bottom, 40m on sides) |
| Caractéristique 5 | Extra height for RCBOs (standard and mini RCBOs available on our store) |
| Caractéristique 6 | 1mm electro-galvanised steel (zinc) |
| Caractéristique 7 | Busbar shroud |
| Caractéristique 8 | RAL 9001 powder-coated arctic white finish to give a stylish look |
| Caractéristique 9 | Circuit identification labels (Full label pack) |
| Caractéristique 10 | Captive screws on front cover as standard for ease of installation |
| Caractéristique 11 | IP20XC Rated |
| Caractéristique 12 | BS EN61439-3 compliant |
Les tarifs sont réservés à nos clients. Connectez-vous ou demandez un devis pour obtenir un prix et passer commande.
