Fusebox

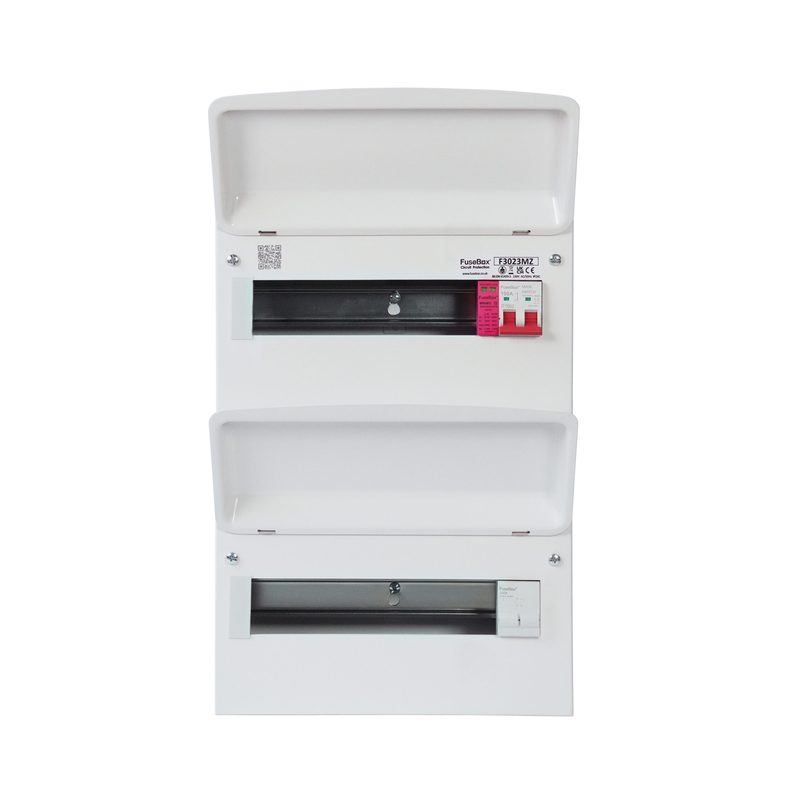

Fusebox F3023MZ 23 Way (11/12 double bank) 100A Main Switch Consumer Unit With SPD
The FuseBox F3023MZ consumer unit features 23 usable ways (11/12 double bank) and comes with 100A Main Switch, A Type 2 Surge Protection device As with all of the fusebox Surge Protected consumer units, the F3023MZ has plenty of space internally for installing both the mini and standard height RCBOs. (See related products below). Additional features to the Fusebox range are captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear. This consumer unit is supplied with an installation pack which includes a busbar, an icon label pack, and a updated grommet strip. Dimensions : 512mm x 306mm x 113mm (HxWxD) Updated model replacing F2021MX
Fiche technique
| Référence | F3023MZ |
|---|---|
| Marque | Fusebox |
| Catégorie | Tableaux domestiques |
| Caractéristique 1 | Reinforced grommet strip for enhanced cable protection |
| Caractéristique 2 | 23 Way SPD main switch consumer unit |
| Caractéristique 3 | Two extra usable ways for expanded circuit capacity |
| Caractéristique 4 | Single module Type 2 Surge Protection Device (SPD) |
| Caractéristique 5 | 100A double bank main switch incomer |
| Caractéristique 6 | 1mm electro-galvanised steel construction |
| Caractéristique 7 | RAL 9001 powder-coated finish |
| Caractéristique 8 | Earth and neutral terminal bars at top |
| Caractéristique 9 | Removable, raised DIN rail |
| Caractéristique 10 | Round knock-outs on all faces |
| Caractéristique 11 | Extra height for RCBOs |
| Caractéristique 12 | Tail clamp (ACCF) supplied |
| Caractéristique 13 | Circuit identification labels included |
| Caractéristique 14 | Captive screws on front cover |
| Caractéristique 15 | IP20XC rated |
| Caractéristique 16 | Complies with BS EN61439-3 and 18th Edition |
Les tarifs sont réservés à nos clients. Connectez-vous ou demandez un devis pour obtenir un prix et passer commande.
