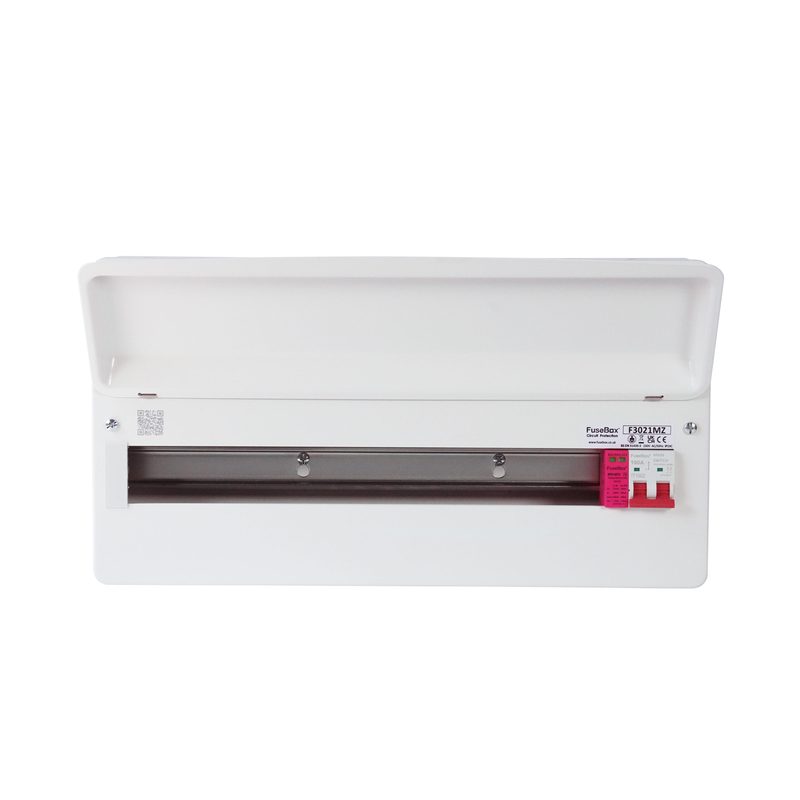

Fusebox F3021MZ 21 Way 100A Main Switch Consumer Unit With SPD
The FuseBox F3021MZ consumer unit features 21 usable ways and comes with 100A Main Switch, A Type 2 Surge Protection device As with all of the fusebox Surge Protected consumer units, the F3021MZ has plenty of space internally for installing both the mini and standard height RCBOs. (See related products below). Additional features to the Fusebox range are captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear. This consumer unit is supplied with an installation pack which includes a busbar, an icon label pack, and a updated grommet strip. Dimensions – Height 480mm x Width 255mm x Depth 113mm Updated model replacing F2020MX
Fiche technique
| Référence | F3021MZ |
|---|---|
| Marque | Fusebox |
| Catégorie | Tableaux domestiques |
| Caractéristique 1 | Reinforced grommet strip for enhanced cable protection |
| Caractéristique 2 | 21 Way SPD main switch consumer unit |
| Caractéristique 3 | Single module Type 2 Surge Protection Device (SPD) |
| Caractéristique 4 | 100A main switch incomer |
| Caractéristique 5 | 1mm electro-galvanised steel construction |
| Caractéristique 6 | RAL 9001 powder-coated finish |
| Caractéristique 7 | Earth and neutral terminal bars at top |
| Caractéristique 8 | Removable, raised DIN rail |
| Caractéristique 9 | Round knock-outs on all faces |
| Caractéristique 10 | Extra height for RCBOs |
| Caractéristique 11 | Tail clamp (ACCF) supplied |
| Caractéristique 12 | Circuit identification labels included |
| Caractéristique 13 | Captive screws on front cover |
| Caractéristique 14 | IP20XC rated |
| Caractéristique 15 | Complies with BS EN61439-3 and 18th Edition |
Les tarifs sont réservés à nos clients. Connectez-vous ou demandez un devis pour obtenir un prix et passer commande.
