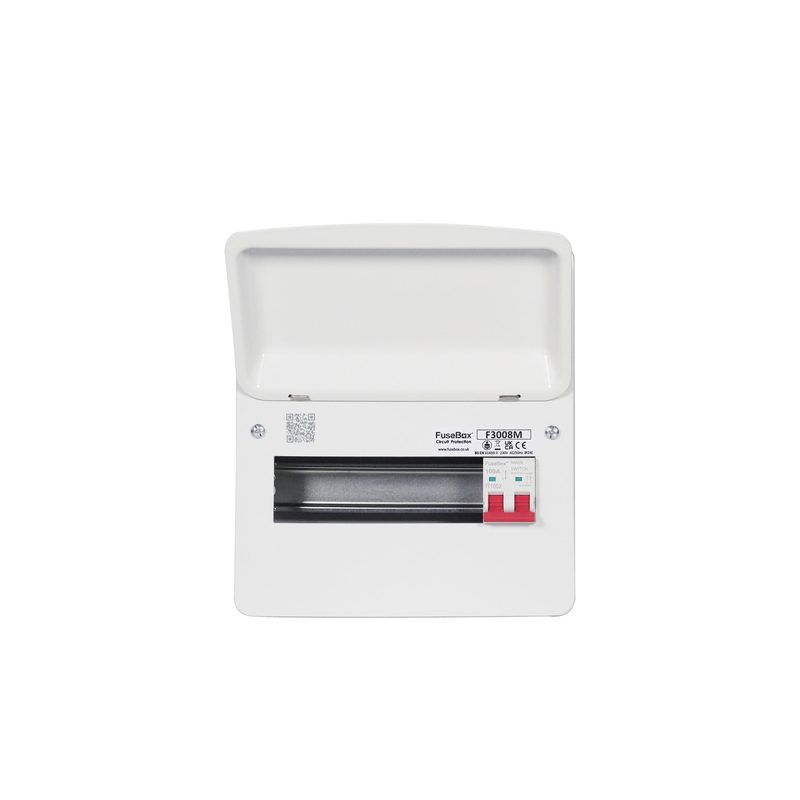

Fusebox F3008M 8 Way 100A Main Switch Consumer Unit
The F3008M 8 way Fusebox Consumer Unit is an AMD3 compliant robust metal fuse box which is finished in a smooth white with conduit knockouts on all planes and large knockouts to the rear. A removeable key slot din rail together with earth and neutral terminal bars positioned at the top ensure a quick and easy installation. Blanks and circuit identification labels are supplied with every Fusebox board. The fusebox F3008M main switch consumer unit features 8 usable ways and comes with 100A Main Switch Incomer and a 32mm tails clamp. You also have space to fit a surge protection device too. As with all of the FuseBox boards, the F3008M has more than enough space for installation of both the mini and standard height RCBO Additional features include captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear. This consumer unit…
Fiche technique
| Référence | F3008M |
|---|---|
| Marque | Fusebox |
| Catégorie | Tableaux domestiques |
| Compact size | 234mm x 255mm x 113mm |
| Caractéristique 1 | Reinforced grommet strip for cable protection |
| Caractéristique 2 | 8 Way main switch consumer unit |
| Caractéristique 3 | Extra way compared to (F2007M) |
| Caractéristique 4 | 100A main switch incomer |
| Caractéristique 5 | EN 61439-3 compliant |
| Caractéristique 6 | Earth and neutral terminal bars at top |
| Caractéristique 7 | Removable, raised DIN rail |
| Caractéristique 8 | Round knock-outs on all sides |
| Caractéristique 9 | Extra height for RCBOs |
| Caractéristique 10 | Circuit identification labels included |
| Caractéristique 11 | Captive screws on front cover |
| Caractéristique 12 | Compatible with 100A tail clamps |
