Fusebox

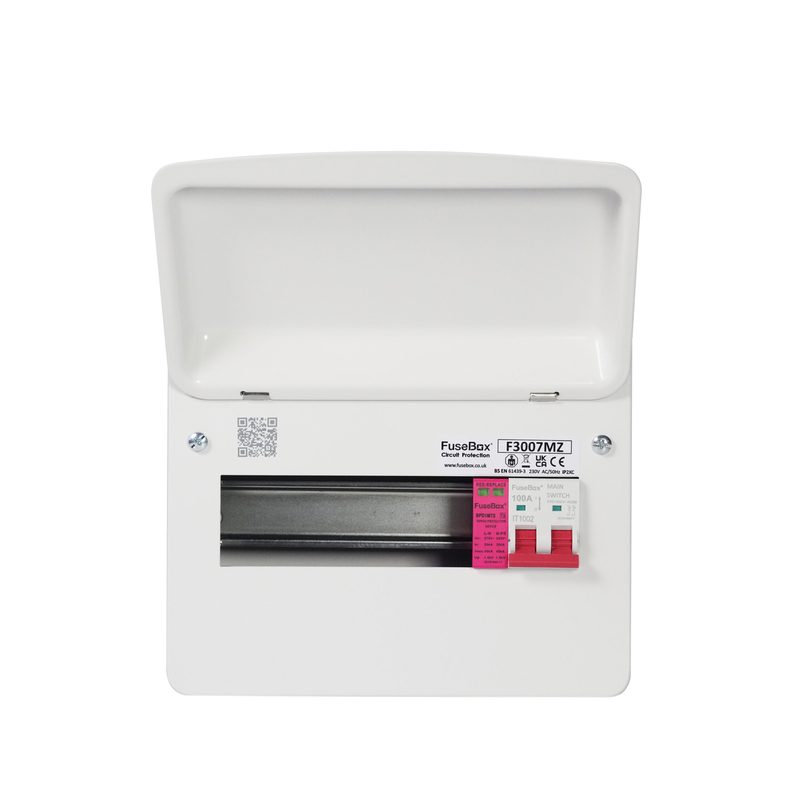

Fusebox F3007MZ 7 Way 100A Main Switch Consumer Unit With SPD
The FuseBox F3007MZ consumer unit features 7 usable ways and comes with 100A Main Switch, A Type 2 Surge Protection device As with all of the fusebox Surge Protected consumer units, the F3007MZ has plenty of space internally for installing both the mini and standard height RCBOs. (See related products below). Additional features to the Fusebox range are captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear. This consumer unit is supplied with an installation pack which includes a busbar, an icon label pack, and a updated grommet strip. Dimensions – Height 234mm x Width 259mm x Depth 113mm Updated model replacing F2006MX
Fiche technique
| Référence | F3007MZ |
|---|---|
| Marque | Fusebox |
| Catégorie | Tableaux domestiques |
| Caractéristique 1 | Reinforced grommet strip for enhanced cable protection |
| Caractéristique 2 | 7 Way SPD main switch consumer unit |
| Caractéristique 3 | Additional usable way |
| Caractéristique 4 | Single module Type 2 Surge Protection Device (SPD) |
| Caractéristique 5 | 100A main switch incomer |
| Caractéristique 6 | Earth and neutral terminal bars at top |
| Caractéristique 7 | Removable, raised DIN rail |
| Caractéristique 8 | Round knock-outs on all faces |
| Caractéristique 9 | Extra height for RCBOs |
| Caractéristique 10 | Circuit identification labels included |
| Caractéristique 11 | 18th Edition and Amendment 3 compliant |
| Terminal bar tightening torque | 2.0 Nm |
Les tarifs sont réservés à nos clients. Connectez-vous ou demandez un devis pour obtenir un prix et passer commande.
