Fusebox

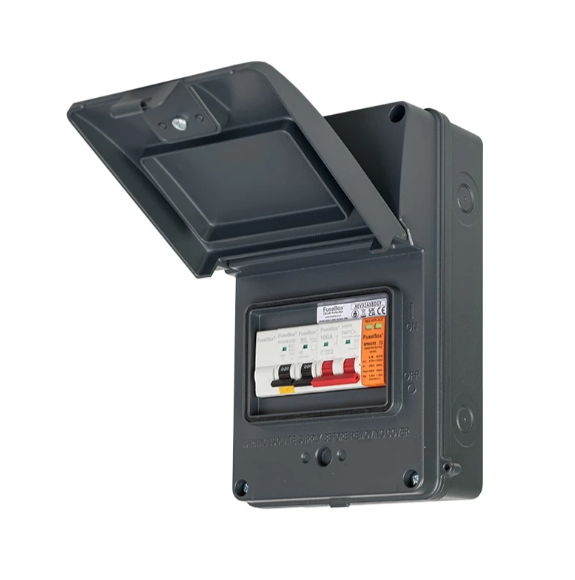

FuseBox AEV32AXBDGYZ EV IP65 Consumer Unit 32A RCBO, SPD & 100A Main Switch 6 Module
Key Features
Fiche technique
| Référence | AEV32AXBDGYZ |
|---|---|
| Marque | Fusebox |
| Catégorie | Tableaux VE, garage & IP |
| Caractéristique 1 | Includes 32A Bidirectional RCBO (RTAMB32BD), 100A Main Switch (IT1002), SPD (SPDCUKITT2) |
| Caractéristique 2 | Robust 6 module IP65 aluminium enclosure available in white (RAL9002) or grey (RAL7021). |
| Caractéristique 3 | Extra height enclosure, making it ideal for standard RCBOs and AFDDs ensuring plenty of internal space to route cables. |
| Caractéristique 4 | Complete with tail clamp which can be fitted in two positions depending on configuration and removeable din rail making first fix easy. |
| Caractéristique 5 | Empty enclosures are supplied with neutral cable and busbar allowing the installer to configure on site and populate with FuseBox devices of |
| Caractéristique 6 | their choice. |
| Caractéristique 7 | Base and front cover can be sealed with wire tag for security and drop down lid to ensure IP65 rating. |
| Caractéristique 8 | Designed for external and internal use. |
| Caractéristique 9 | Dimensions HxWxD 270x182x102mm |
