Europa Components & Equipment plc

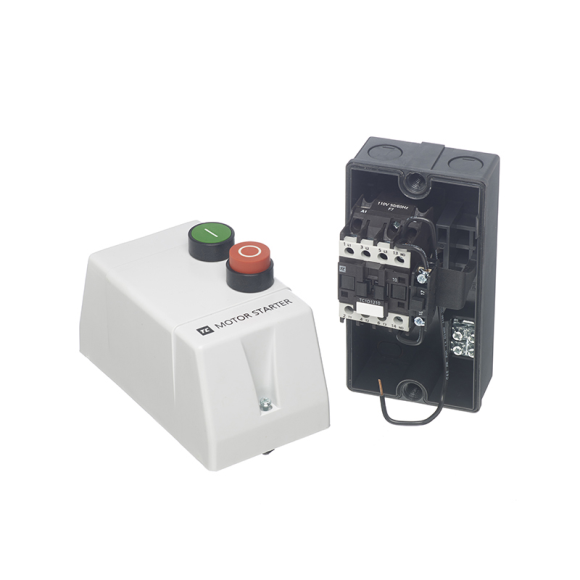

Europa LE1-D123U7 DOL Starter 12A 240V
Type: Enclosed Stop and Start Button
Fiche technique
| Référence | LE1-D123U7 |
|---|---|
| Marque | Europa Components & Equipment plc |
| Catégorie | Commande & sectionnement |
| Type | Enclosed Stop and Start Button |
| Depth | 140mm |
| Width | 88mm |
| Height | 166mm |
| Weight | 0.872 Kg |
| Overload | Not Included |
| Coil voltage | 240V AC |
| Heat dissipation AC | 2 to 3W |
| Maximum operating rate | 3600 operations per hour |
| Coil consumption inrush | 70VA |
| Coil consumption sealed | 8VA |
| Main pole terminal capacity | 4mm2 |
| Maximum power rating @ 415V | 5.5kW |
| Mechanical life 50Hz / 60Hz | 1.5 x 107 |
| Maximum rated current @ 415V AC3 | 12A |
| Maximum rated operational voltage | 690V |
| Enclosure Ingress Protection Rating | IP65 |
| Maximum thermal current Ith <40degC | 25A |
