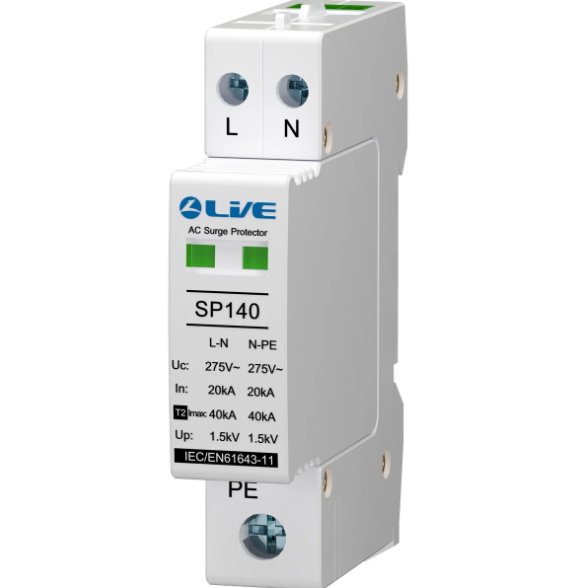

Live SP1401P+N/2 Type 2 SPD Single Module 1P+N 20kA/40kA
Surge Protective Device SPDs are recommended for installations in accordance with 18th edition wiring regulation to protect sensitive and expensive electrical equipment. This range of SPDs are characterised by an 8/20?s current wave, they can prevent the spread of over voltages in electrical installations and protects equipment connected to it. These surge protector must be replaced if the indicator turns red. They comply with BS EN61643-11. Features:
Specifications
| Part number | SP1401P+N/2 |
|---|---|
| Brand | Live Electrical |
| Category | Main switches & general protection |
| BSI Standard | BSEN61643-11. |
| Type Test Class | Type 2. |
| Caractéristique 1 | High discharge capacity, quick response. |
| Caractéristique 2 | Green window will change when device is spent and is fitted with terminals for remote indication. |
| Caractéristique 3 | Up- Voltage protection level (L-N),(N-PE):1.5 kV. |
| Caractéristique 4 | In -Nominal discharge current for class ll:20 kA. |
| Degree of protection | IP20. |
| Cable terminal max capacity | L:16mm 2 N:10mm 2 PE:10mm 2 . |
| Imax – Maximum discharge current | 40 kA. |
| Uc-Max continuous operating voltage | 275 VAC. |
| lsccr- Short circuit current rating | 25 kA. |
