Live Electrical

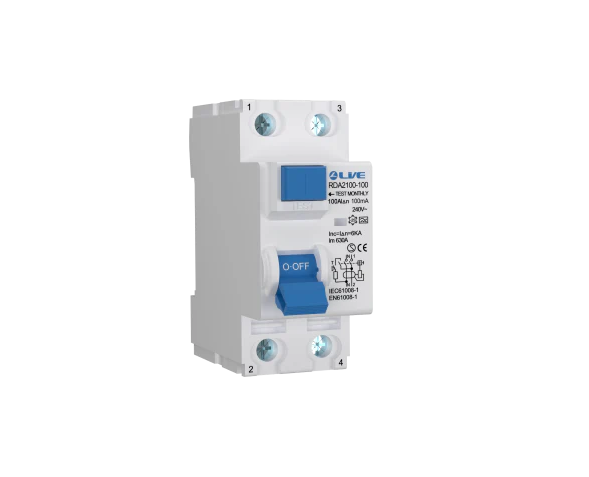

Live RDA2100-100 Double Pole RCD 100mA 100A
2 Pole Type A Residual Current Devices (RCD) Specification:
Specifications
| Part number | RDA2100-100 |
|---|---|
| Brand | Live Electrical |
| Category | Main switches & general protection |
| Pole No. | 2 |
| Rated voltage | 240/415V AC |
| Rated frequency | 50/60Hz |
| Rated current(A) | 100 |
| Caractéristique 1 | Tripping duration Instantaneous tripping?0.1s |
| Caractéristique 2 | Connection capacity Rigid conductor up to 25mm2 |
| Electro-mechanical endurance | 4000cycles |
| Residual tripping current range | 0.5I?n~l?n |
| Rated residual non operating current | 0.5I?n |
| Rated conditional breaking current Inc | 6000A |
| Rated residual operating current I?(mA) | 100 |
