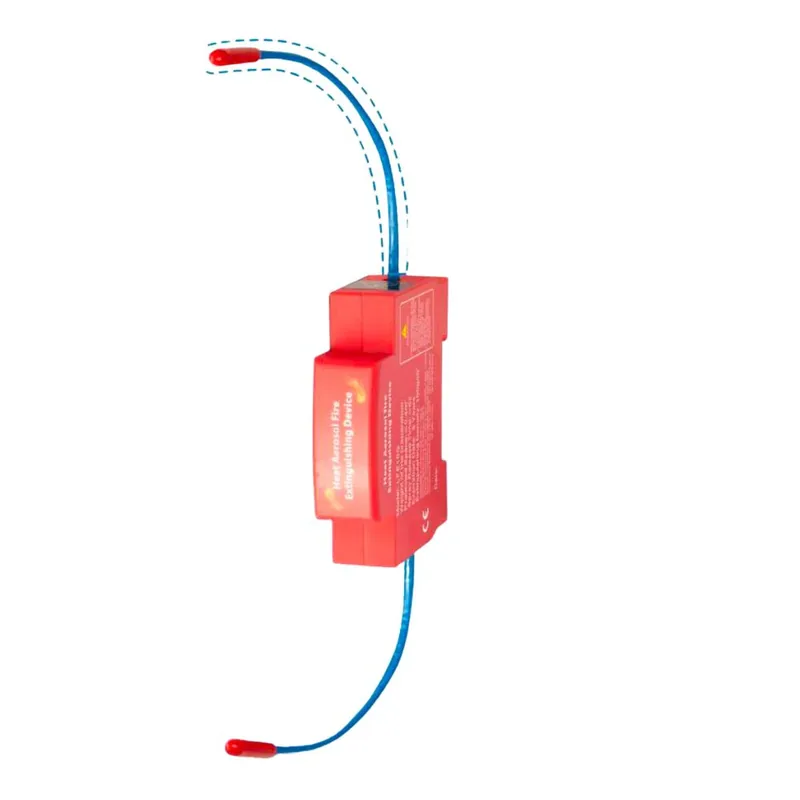

Live LFE10G Din Rail Aerosol Fire Extinguisher Device
The Live Electrical LFE10G DIN Rail Aerosol Fire Extinguisher is an automatic, heat-activated fire suppression device designed to protect enclosed electrical spaces where early fire detection and rapid intervention are critical. Engineered specifically for consumer units, distribution boards, control panels, and EV charger enclosures, the LFE10G activates automatically at approximately 170°C, releasing a fire-suppressing aerosol within ≤ 6 seconds. By discharging directly inside the enclosure, it helps to extinguish fires at an early stage, limit fire spread, and significantly reduce heat and smoke damage before escalation occurs. The unit is fully self-contained, requiring no external power supply, making it ideal for both new installations and retrofit applications. Its compact form factor allows installation in confined spaces, with flexible mounting via 35mm DIN rail or the suppli…
Specifications
| Part number | LFE10G |
|---|---|
| Brand | Live Electrical |
| Category | Accessories & connection |
| Oxidiser | Strontium Nitrate (50–58%) |
| Power Supply | Self-contained (no external power required) |
| Product Code | LFE10G |
| Product Type | Heat aerosol fire extinguishing device |
| Mounting Options | 35mm DIN rail or adhesive mounting |
| Protected Volume | Up to 0.4 m³ |
| Caractéristique 1 | Automatic Heat-Activated Fire Extinguisher – No manual intervention required |
| Caractéristique 2 | Rapid Activation – Discharges aerosol within ≤ 6 seconds |
| Caractéristique 3 | Targeted Internal Protection – Suppresses fire directly inside the enclosure |
| Caractéristique 4 | Self-Contained Unit – No wiring or external power needed |
| Caractéristique 5 | Compact Design – Ideal for consumer units and small enclosures |
| Caractéristique 6 | Flexible Mounting – 35mm DIN rail or adhesive mounting included |
| Caractéristique 7 | Standards Compliant – BS EN 15276-1 & 2 certified |
| Caractéristique 8 | Consumer units |
| Caractéristique 9 | Distribution boards |
| Spray Release Time | ≤ 6 seconds |
| Caractéristique 10 | Electrical control panels |
| Caractéristique 11 | EV charger enclosures |
| Caractéristique 12 | Small enclosed electrical cabinets |
| Caractéristique 13 | Activation Temperature: Approx. 170°C |
| Extinguishing Density | 100 g/m³ |
| Activation Temperature | Approx. 170°C |
| Protected Space Volume | ≤ 0.4 m³ |
