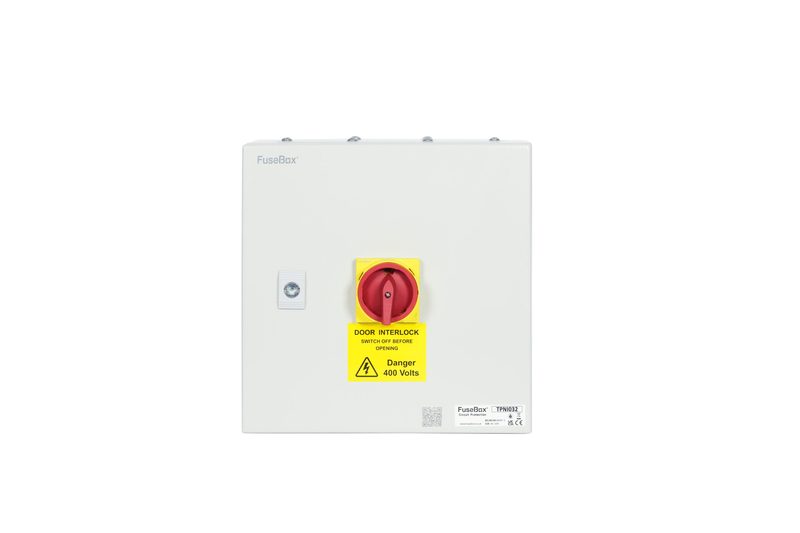

Fusebox TPNI032 32A TP&N Metal Isolator Switch Disconnector
The Fusebox TPNI032 is a robust 32A three-pole and neutral isolator switch designed for reliable mains isolation in domestic and commercial installations. Built with a heavy-duty 1.2mm steel enclosure finished in RAL7035 grey, it delivers exceptional durability in demanding environments. The manually operated red/yellow handle provides intuitive ON/OFF control with mechanical door interlock preventing unsafe access when energised. For enhanced security, the handle accepts a padlock in the OFF position. Removable gland plates at top and bottom facilitate flexible cable entry, whilst the generous internal cavity simplifies termination work. Operating reliably between -25°C and +55°C, it integrates seamlessly with Fusebox Main Switch and TPN consumer units, making it an essential component for compliant electrical installations.
Specifications
| Part number | TPNI032 |
|---|---|
| Brand | Fusebox |
| Category | Control & isolation |
| Caractéristique 1 | AC-23A Rating |
| Caractéristique 2 | Large, durable 1.2mm steel enclosure with a powder-coated RAL7035 finish |
| Caractéristique 3 | Manually operated red/yellow handle for secure ON/OFF isolation |
| Caractéristique 4 | Mechanically interlocked door in the ‘ON’ position to prevent access |
| Caractéristique 5 | Handle can be padlocked in the OFF position for extra-secure isolation |
| Caractéristique 6 | Removable gland plates at the top and bottom |
| Caractéristique 7 | Spacious internal layout ensures easy cable termination |
| Caractéristique 8 | Operating temperature range of -25°C to +55°C |
| Caractéristique 9 | Compatible with Fusebox Main Switch and TPN consumer units |
