Fusebox

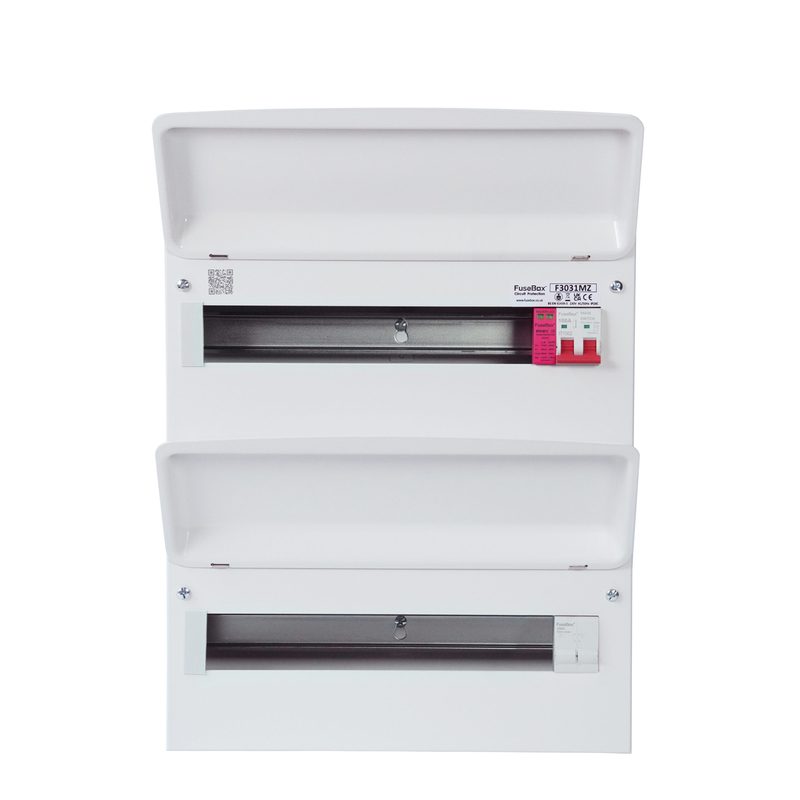

Fusebox F3031MZ 31 Way (15/16 double bank) 100A Main Switch Consumer Unit With SPD
The FuseBox F3031MZ consumer unit features 31 usable ways (15/16 double bank) and comes with 100A Main Switch, A Type 2 Surge Protection device As with all of the fusebox Surge Protected consumer units, the F3031MZ has plenty of space internally for installing both the mini and standard height RCBOs. (See related products below). Additional features to the Fusebox range are captive screws on the front cover, round knockouts on all four sides along with 2 large rectangular knockouts on the rear. This consumer unit is supplied with an installation pack which includes a busbar, an icon label pack, and a updated grommet strip. Dimensions : 512mm x 378mm x 113mm (HxWxD) Updated model replacing F2029MX
Specifications
| Part number | F3031MZ |
|---|---|
| Brand | Fusebox |
| Category | Domestic consumer units |
| Caractéristique 1 | Reinforced grommet strip for enhanced cable protection |
| Caractéristique 2 | 31 Way SPD main switch consumer unit |
| Caractéristique 3 | 100A main switch incomer |
| Caractéristique 4 | Single module Type 2 Surge Protection Device (SPD) |
| Caractéristique 5 | 1mm electro-galvanised steel construction |
| Caractéristique 6 | RAL 9001 powder-coated finish |
| Caractéristique 7 | Earth and neutral terminal bars at top |
| Caractéristique 8 | Removable, raised DIN rail |
| Caractéristique 9 | Round knock-outs on all faces |
| Caractéristique 10 | Extra height for RCBOs |
| Caractéristique 11 | Tail clamp (ACCF) supplied |
| Caractéristique 12 | Circuit identification labels included |
| Caractéristique 13 | Captive screws on front cover |
| Caractéristique 14 | IP20XC rated |
| Caractéristique 15 | Complies with BS EN61439-3 and 18th Edition |
