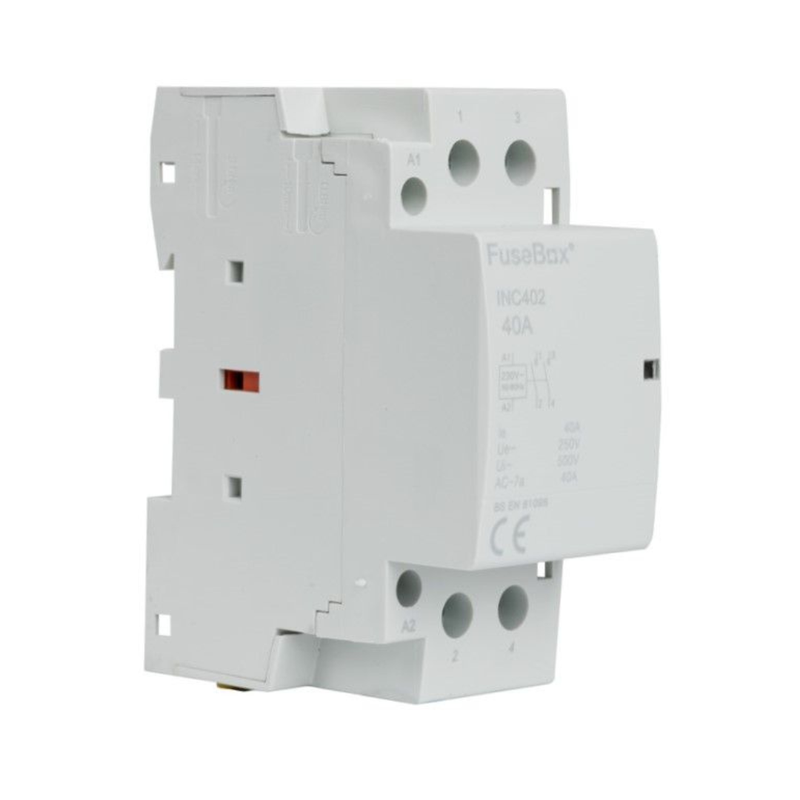

Fusebox INC402 – 40A 2P N/O 230V Contactor
FuseBox installation modular contactors, that are suitable for use in modular enclosures and consumer units. Providing an economical alternative to other brands on the market, FuseBox contactors are available in 2 or 4 pole versions and in 20A, 40A and 63A current ratings. Modular contactor are physically different to ordinary contactors, they are the same shape as a circuit breaking allowing them to be used in consumer units to control heating devices and more. Specification
Specifications
| Part number | INC402 |
|---|---|
| Brand | Fusebox |
| Category | Control & isolation |
| Voltage | 230V / 50Hz |
| Material | PA6 Nylon |
| Standard | BS EN 61095 |
| IP rating | IP20 |
| Manufacturer | FuseBox |
| Torque setting | CC (A1,A2) 0.8Nm, PC (1,2,3,4) 0.8Nm |
| Terminal capacity | 4mm² |
| Caractéristique 1 | Available in current rating and pole types: – 20 Amp = 2 Pole – 25 Amp = 4 Pole – 40 Amp = 2 Pole – 63 Amp = 4 Pole |
| Caractéristique 2 | Complete with Heat Sheilds |
| Caractéristique 3 | DIN Rail Mounting |
| Caractéristique 4 | MCB Form Factor |
| Contact configuration | N/O Contacts |
